Suitable for:• General Surgery • Vascular Surgery • Cardiac Surgery • Neurology Surgery • Urology Surgery • Gynecology • Laparoscopy • Plastic Surgery
Standard Accessories:• Anesthetic Screen • Shoulder Support with pad • Arm Boards with pad • lateral support with pad• Knee crutches • Water proof rubber mattress.
Lenght of Table | 1910 mm |
Width of Table Top | 522 mm |

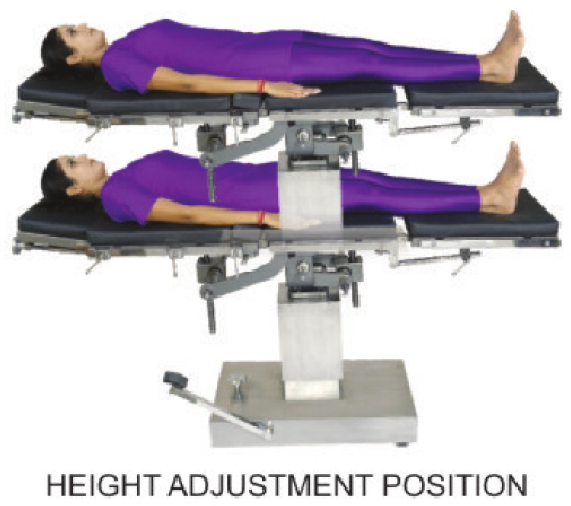

Height (Min-Max) | 750 - 1000 mm |

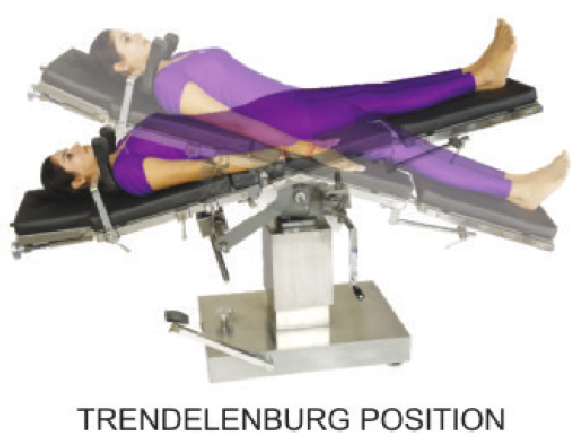

Trendelenburg (Rev.) | 25° |
Lateral Tilt | +-20° |
Back Section | +-60° |
Head Section | +-60° |
Leg Section | 0° / 90° |
• Precision made Hydraulic System with a single lever action. • Hydraulic Lift controlled by a foot Pedal.• Five Section stainless steel top gives anatomic adoptation to the patient body.
This is hydraulic surgical table designed especially for Orthopedic, Neurology, Urology and ERCP Procedure. Universal Surgical Table features can be opting by its mechanism i.e. Lateral tilt, Trendelenburg/ Reverse Trendelenburg, Chair Position, Flex – reflex and Adjustable height functions. Universal Surgical Table is constructed of stainless steel and other high quality materials. The table is equipped with a large translucent top, for C-arm use.
Features :Specialized for orthopaedic, neurology, ERCP, laparoscopy and urology.The provides excellent C-Arm and surgical access.Slimline column offset relative to tabletop and base.Furnished with hard, robust stainless steel shell which provides the sense of dirt free & sanitized operations.Smooth height adjustment of the table can be achieved by using the foot pedal.Trendelenburg, lateral tilt, flex-reflex, chair operated manually.Interchangeable general sections (head/leg).
Top dimension | L 1905 x W 533 mm |
Height adjustment | 750 mm – 1000 mm |
Trendelenburg / Reverse | 30° / 25° |
Lateral tilt | 20° / 20° |

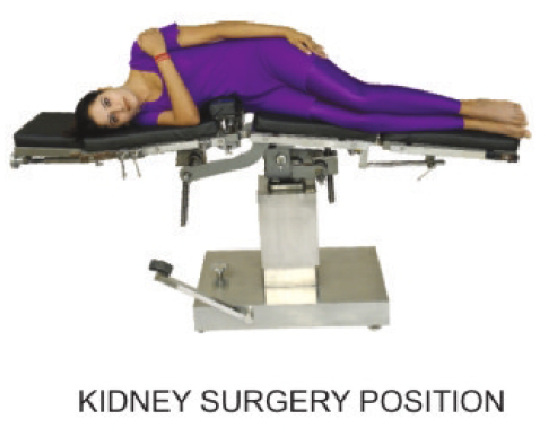

Kidney elevator | 150 mm |
Back Rest (up / down) | 80° / 25° |
Leg Rest (up / down) | 15° / 90° |
Head Rest (up / down) | 20° / 60° |
Patient Weight Capacity | 150 kgs (330 lbs) |
This Side End Control OT Table is mobile, hydraulic designed to support virtually all general surgical procedures like: gynecology and urology. Universal Surgical Table features can be opting by its mechanism i.e. Lateral tilt, Trendelenburg/ Reverse Trendelenburg, Chair Position and Adjustable height functions.
Features :Specialized for minor & general procedures.Functions can be opting by its mechanism i.e. lateral tilt, trendelenburg/reverse trendelenburg, flex-reflex & chair position.Height adjustment by stepping foot pedal downward.Detachable head and leg sections.Furnished with hard, robust stainless steel shell which provides the sense of dirt free & sanitized operations.
Top dimension | L 1830 x W 497 mm |
Height adjustment | 750 mm – 1000 mm |
Trendelenburg / Reverse | 30° / 25° |
Lateral tilt | 20° / 20° |
Kidney elevator | 150 mm |
Back Rest (up / down) | 80° / 25° |
Leg Rest (up / down) | 15° / 90° |
Head Rest (up / down) | 20° / 60° |
Patient Weight Capacity | 120 kgs (264 lbs) |
This five section table with radiographic sheet make it X-RAY compatible. The Meditech MI 2005 Universal Surgical Table features can be opting by its mechanism i.e. Lateral tilt, Trendelenburg/ Reverse Trendelenburg, Chair Position, Flex – Reflex and Adjustable Height functions.
Features :X-ray compatible table with translucent table top.Functions can be opting by its mechanism i.e. lateral tilt, trendelenburg/reverse trendelenburg, flex-reflex & chair position.Height adjustment by stepping foot pedal downward.Furnished with hard, robust stainless steel shell which provides the sense of dirt free & sanitized operations.Interchangeable general sections (head/leg).
Top dimension | L 1870 x W 508 mm |
Height adjustment | 750 mm – 1000 mm |
Trendelenburg / Reverse | 30° / 25° |
Lateral tilt | 20° / 20° |
Kidney elevator | 150 mm |
Back Rest (up / down) | 80° / 25° |
Leg Rest (up / down) | 15° / 90° |
Head Rest (up / down) | 20° / 60° |
Patient Weight Capacity | 120 kgs (264 lbs) |
